Product Description
Product number | FBOT-001 |
Operating system | Android 5.1 operating system and above |

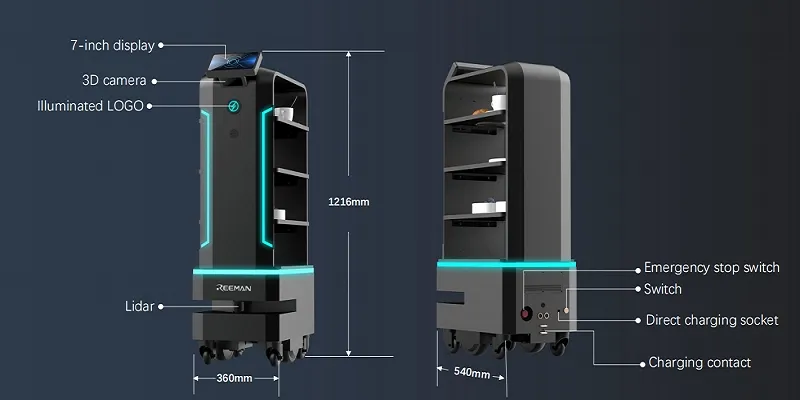

Overall size | 540mm(L)*360mm(W)*1216mm(H) |
Net weight | 62KG |
Screen | 7 inches (resolution 1024*600) |
Tray size | 335mmX465mm (4 layers in total) |
Pallet weight limit | 20kg/layer |
| Plate spacing | 20kg/layerThe first layer is 175mm, the second and third layers are 190mm, and the fourth layer is 170mm |
Plate | Quick-release design |
Charging time | 6 hours (automatically rechargeable) |
Voice prompts | Customizable voice |
Task configuration | Customize task settings |
Battery parameters | LiFePO4 25AH-8S1P 640WH 25.6V |
Battery life | 11hours |
Movement parameters | 25m laser navigation, autonomous obstacle avoidance; climbing: 5°; rotation radius: 0, swing radius: 254mm; |
Environmental conditions | Working temperature: 5Cº~40Cº; Humidity: 5%~85% Storage temperature: -10º~50º (under extreme temperature, the battery needs to be charged and discharged at least once a month) |
Detailed Photos
